Products >> Auto Horizontal Cartoning Machine Series >> BOC-H120A

  • Automatic Horizontal Box Packing Machine (Basic Type A)

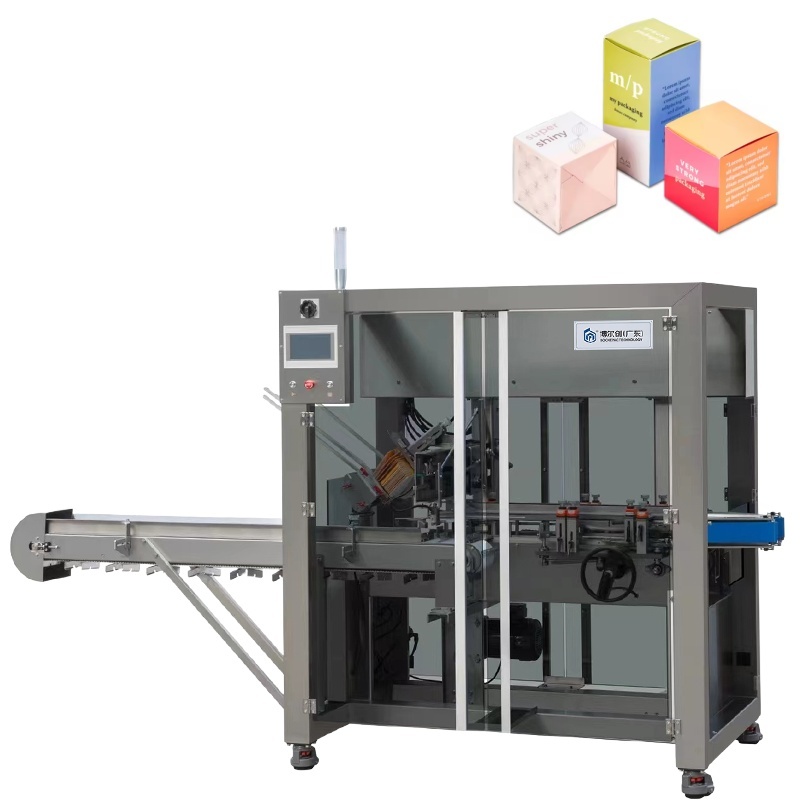

Automatic Horizontal Box Packing Machine (Basic Type A)

Automatic Horizontal Box Packing Machine (Basic Type A)

 » Adopt PLC control, touch screen operation, frequency converter speed control technology.
» All electrical components of the electrical appliances are famous brand.
» With automatic folding instructions ( 1 - 4 fold, adjustable ).
» Automatic batch number printing.
» Automatic alarm when lacking of materials, lacking of leaflets, and lacking of box to ensure 100% qualified products.
» With the function of automatic Stop when overloaded.
» Modular structure, interchangeable specifications, no need to change tools, etc.
装盒速度 Encasing speed
20- 9 0 盒 / 分钟 box / min

纸盒 Box
质量要求 Qualily requirement
250 - 350g / m2 ( 视纸盒大小而定 According to its dimensions to confrm)
尺寸范围 Dimension range
( 65 - 200) mm x ( 30 - 80) mm x ( 15 - 75 ) mm ( L x W x H )
( 特殊尺寸可定做 )

说明书
Leaflet
质量要求 Quality requirement
60 - 70g / m2
尺寸范围 Dimension range
( 80 - 250 ) mm x ( 90 - 170 ) mm
折叠范围 Fold range
( 1 - 4 ) 折 fold

压缩空气 Compressed air
工作压力 Working pressure
≥ 0.6mpa
耗气量 Air consumption
120-160 L / min

电源 Power supply
单相 220V 50 / 60Hz Single phase
主电机功率 Motor power
0.75kw
外形尺寸 Machine dimension
2550 x 1210 x 1770mm ( L x W x H )
整机净重 Machine weight

600kg
