Products >> Auto Horizontal Cartoning Machine Series >> BOC-H120C

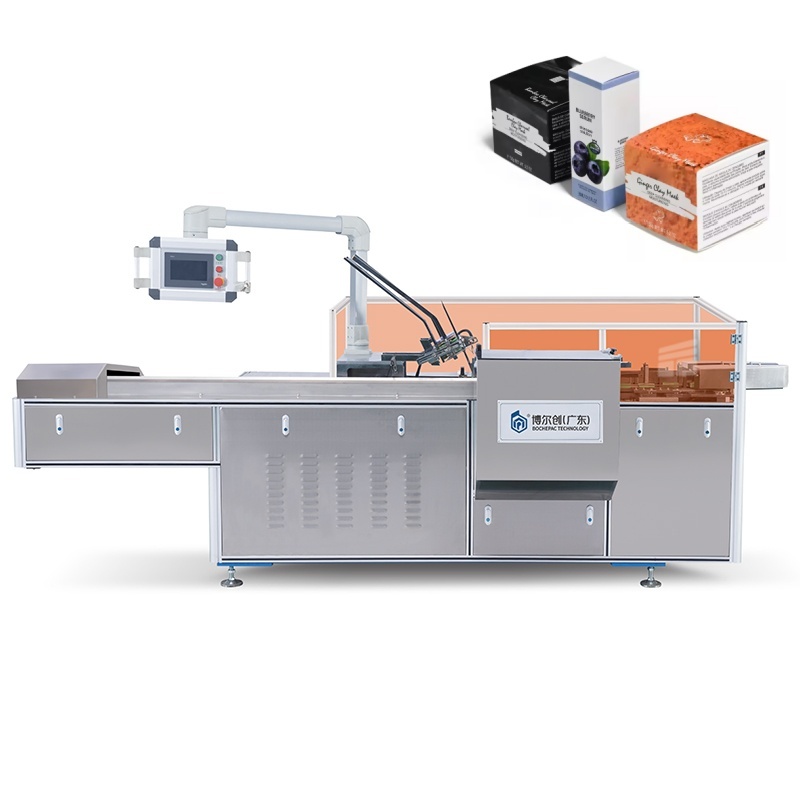

Automatic Horizontal Box Packing Machine (Basic Type C)

Product No.：202595141652
Online Inquiry

» This product is the newest model which is our company further improved on the basis of advanced technologies at home and abroad. It is the high-tech product which integrates electricity, gas, light. The product is suitable for cartoning the pharmaceutical products, Foods, and cosmetic, poker, electronic and daily products and so on. The machine can finish automatically all jobs such as leaflet folding, carton opening automatically, the stuff cartooned, bitch number printing, carton sealing and so on(also can use hot melt glue). It can be used alone, or be linked with the other device, to be a production line.

装盒速度 Encasing speed

30 - 100 盒 / 分钟 box / min

纸盒 Box

质量要求 Qualily requirement

250 - 350g / m2 ( 视纸盒大小而定 According to its dimensions to confrm)

尺寸范围 Dimension range

( 55 - 200 ) mm x ( 14 - 120 ) mm x ( 35 - 65 ) mm ( L x W x H )

( 特殊尺寸可定做 )

压缩空气 Compressed air

工作压力 Working pressure

≥ 0.6mpa

耗气量 Air consumption
