Products >> Auto Horizontal Cartoning Machine Series >> BOC-H120D

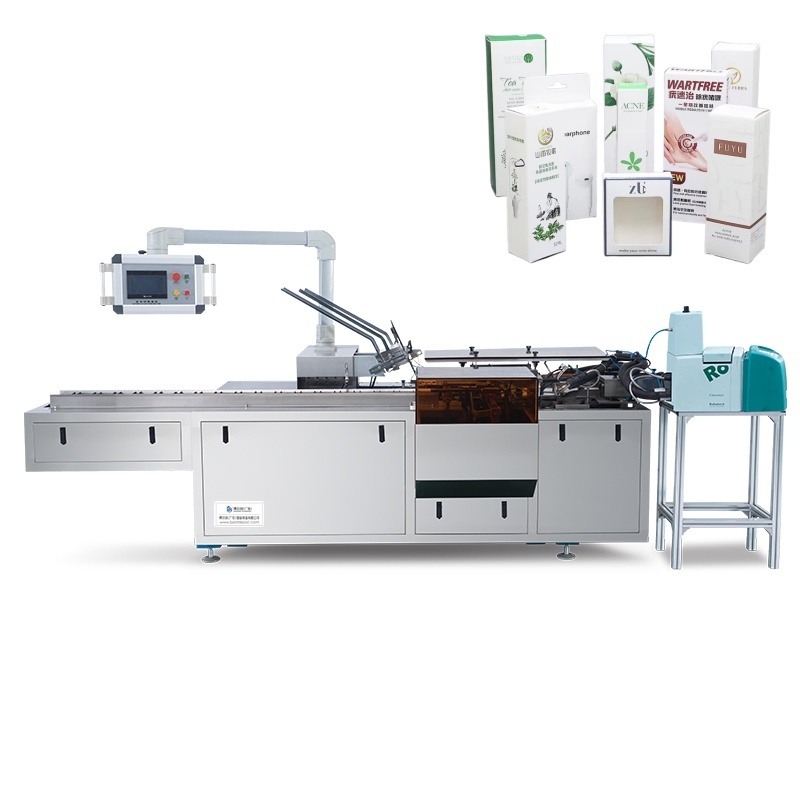

Automatic Horizontal Box Packing Machine (Hot Melt Gluer Type)

» PLC touch screen, frequency inverters, etc, all electrical component adopts International famous brand of such as SIEMENS, PANSONIC, OMRON ...

» Adopt human-machine operation system.

» Automatically stop when machine is overload.

» Automatically reject when lacking of package product and leaflet.

» Automatically display the troubles, Alarm and count finished products.

» Stable performance,operation is easy.

装盒速度 Encasing speed

30 - 100 盒 / 分钟 box / min

纸盒 Box

质量要求 Qualily requirement

250 - 350g / m2 ( 视纸盒大小而定 According to its dimensions to confrm)

尺寸范围 Dimension range

( 55 - 450 ) mm x ( 14 - 120 ) mm x ( 35 - 85 ) mm ( L x W x H )

( 特殊尺寸可定做 )

压缩空气 Compressed air

工作压力 Working pressure

≥ 0.6mpa

耗气量 Air consumption

20m3 / h

电源 Power supply

380V 50Hz

主电机功率 Motor power

1.5kw

外形尺寸 Machine dimension

3500 x 1700 x 1700mm ( L x W x H )

整机净重 Machine weight

1200kg
